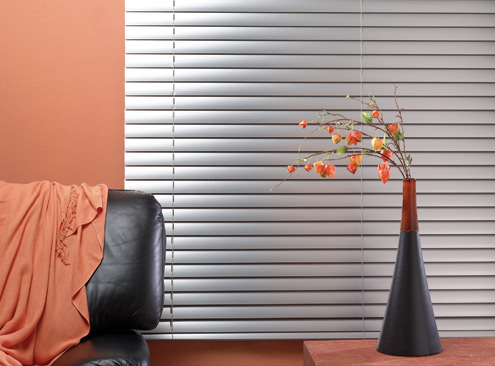

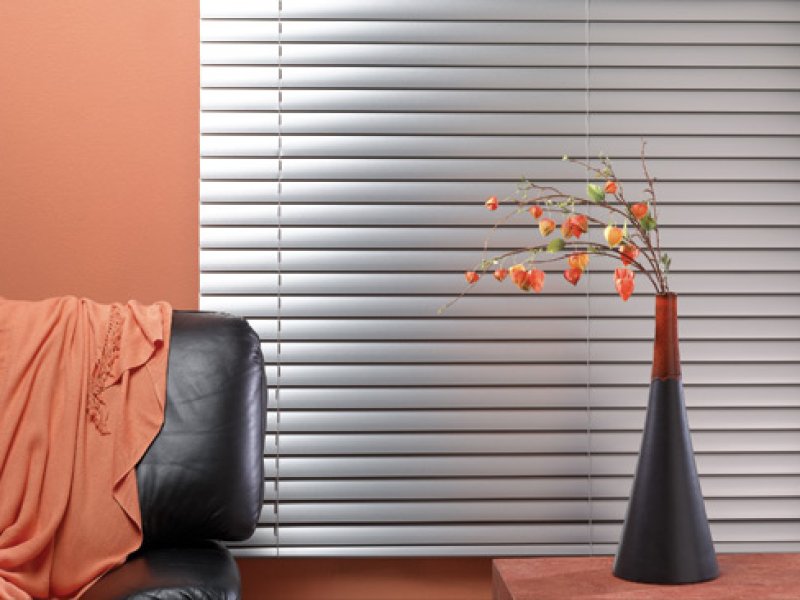

Bali 2 inch Heritage 8 Gauge Aluminum

Tips To Remember:

Use a steel measuring tape
Round down to the nearest 1/8" for width
Round up to the nearest 1/8" for height
See Product Specifications for more specific product info.
Sizes should always be provided in this format: Width x Height
On any measurement given, the factory does have a +/- 1/8 of an inch variance    allowance.

Measure For Aluminum Blinds

Inside Mount Width

•    Measure the exact width (left to right) of the inside edge of the window frame in three places (top, middle and bottom).
•    Take the smallest of the three measurements to the nearest 1/8 of an inch.
•    The factory will take an approximate 1/2 of an inch deduction from the total width to a lot for brackets and correct installation.

Inside Mount Height

•    Measure the exact height (top to bottom) from the top inside edge down to the window sill in three spots across window.
•    Take the largest of the three measurements.

Outside Mount Width

•    Measure the exact width (left to right) of the wooden or metal window frame (outer edge) OR how wide you want the product to be.
•    Be sure to measure wide enough as to cover the entire window plus offer enough coverage to avoid light or privacy gap. 2 inches past the opening on EACH side is suggested if you do not have molding/trim.
•    An Outside Valance with returns will be wider than the ordered width to accommodate covering the headrail and mount.

Outside Mount Height

•    Measure the top and bottom edge of window frame/trim. If no trim, be sure you provide the height you want the shade to be from top of the headrail to bottom of the bottom rail.
•    Be sure to allot for coverage for light control and mounting hardware if mounting above window opening to wall surface. You will need 2 inches of surface area to mount above opening. Call us for further instruction if needed.

Inside, Outside, Ceiling Mount or Special Shape with Box Brackets 78146-00

Inside, Outside or Ceiling Mount With Hidden Brackets 78196-01 (1.2 MB)

Inside & Outside Mount with Side-mount Brackets 78195-00 (137 KB)
