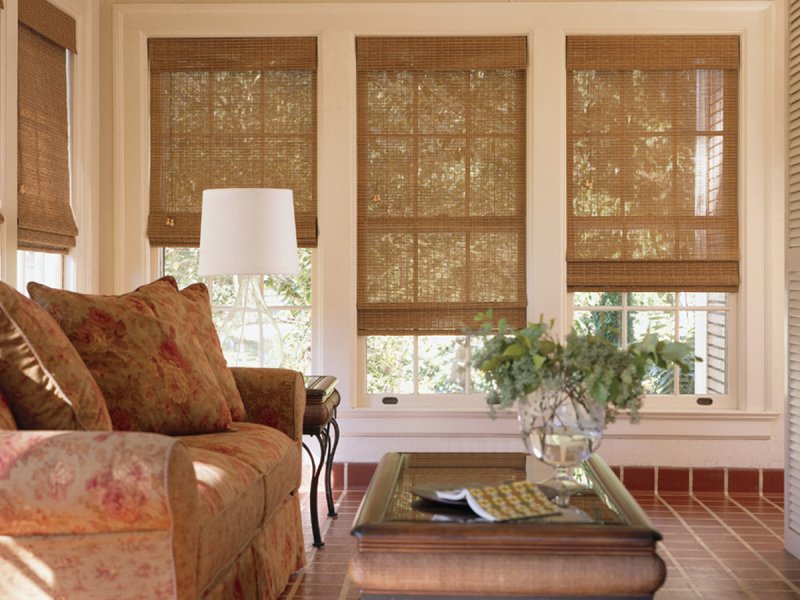

Levolor Spa Cove Natural Shade with Liner Options

Tips To Remember:
Use a steel measuring tape
Round down to the nearest 1/8" for width
Round up to the nearest 1/8" for height
See Product Specifications for more specific product info.
Sizes should always be provided in this format: Width x Height
On any measurement given, the factory does have a +/- 1/8 of an inch variance allowance.

Measuring for Woven Woods

Inside Mount Width
•    Measure the exact width (left to right) of the inside edge of the window frame in three places (top, middle and bottom).
•    Take the smallest of the three measurements to the nearest 1/8 of an inch.
•    The factory will make the correct deduction from the total width to allow for proper installation.  Most manufacturers’ deduct 3/8” from the total width.

Inside Mount Height
•    Measure the exact height (top to bottom) from the top inside edge down to the window sill in three spots across window.
•    Take the largest of the three measurements.

Outside Mount Width
•    Measure the exact width (left to right) of the wooden or metal window frame (outer edge) OR how wide you want the product to be.
•    For Woven Woods make sure the measurement overlaps the window opening by at least 2" on each side to ensure light control and privacy I

Outside Mount Height
•    Measure the top and bottom edge of window frame/trim. If no trim, be sure you provide the height you want the shade to be from top of the headrail to bottom of the bottom rail.
•    Be sure to allow for coverage for light control and mounting hardware if mounting above window opening to wall surface. You will need 2 inches of surface area to mount above opening. Call us for further instruction if needed.

Installation Instructions-Click Here
