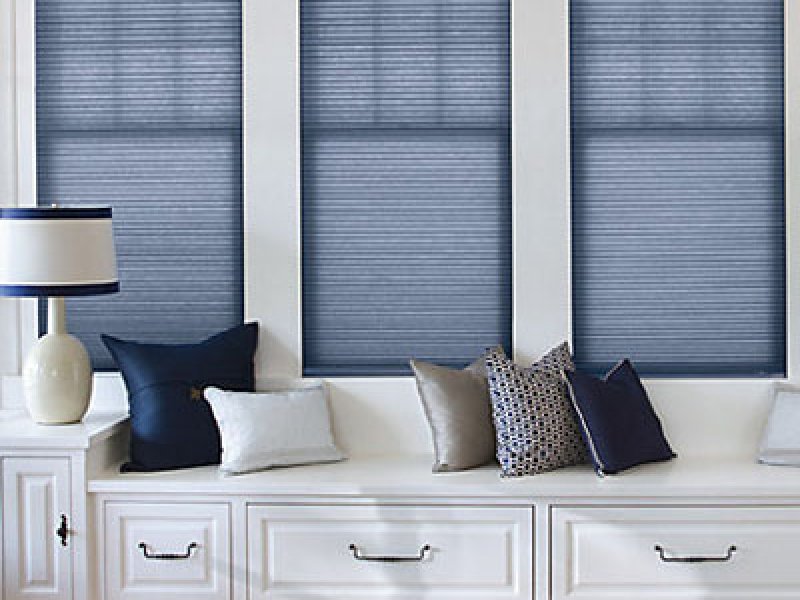

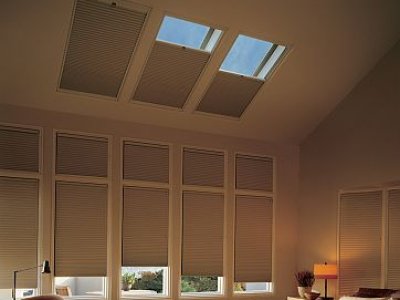

Levolor Accordia Cellular Designer Textures 9/16 Single Cell Light Filtering Shades

Build Your Blind Here

(Click on a sample image to view larger)

Specify your measurements

Width:

Height:

*Mounting Options
Inside Mount manufacturers will take 3/8 inch deduction from this measurement.Outside Mount-manufacturers will not deduct.

Control Mechanisms
Cords are ordered on either side of the blind as well as top down bottom up feature can also be ordered. On larger blinds, the cord loop feature should be added to insure cord life. Cordless obviously doesnt have any cord on the shade as does top down bottom up. 2 blinds on 1 headrail will be split evenly unless you specify in the comment field differently. TRANSFORMATIONS: combine light filtering with room darkening fabrics. 2 fabrics on one shade provide versatile light control. Left cord raises entire shade, right cord operates the 2 fabrics.
View Top down Bottom up, Cord loop

View Option Samples

Hold downs
Hold Down Brackets are meant for holding down the bottom rails so that the blind doesn't bang on the door after mounting.

Label Rooms
You can now tell us the rooms that you are wanting your blinds labelled.

Optional Motorization Upgrades

Special MT Brackets

Upgrade Remote for Motorized Cell Shade

Special Instructions & Notes


Technical Guide click here

Levolor 9/16 inch Single Cell Cellular Shade

Enjoy the cozy feeling of soft, natural light. The inviting warmth and visual presence of natural sunlight illuminating your home is undeniably appealing. Levolor Light Filtering fabrics help soften incoming light to create a perfect ambiance for both formal and casual rooms during the day.

Fabric Comparison Chart

Collection	Cell Size	Number of Colors	Max Fabric Width	Privacy & Light Control
Sheer Efficiency, Light Filtering	9/16" Single Cell	5	120" Cordless 120" Corded	Direct
Tree Bark, Light filtering	9/16" Single Cell	8	120" Cordless 120" Corded	Filtered
Tree Bark, Room Darkening	9/16" Single Cell	8	120" Cordless 120" Corded	Blocked
Seclusions, Light Filtering	9/16" Single Cell	8	120" Cordless 120" Corded	Filtered
Seclusions, Room Darkening	9/16" Single Cell	8	120" Cordless 120" Corded	Blocked
Heathered, Light Filtering	9/16" Single Cell	8	120" Cordless 120" Corded	Filtered
Heathered, Room Darkening	9/16" Single Cell	8	120" Cordless 120" Corded	Blocked
Translucence, Light Filtering	9/16" Single Cell	6	120" Cordless 120" Corded	Filtered
Linen, Light Filtering	9/16" Single Cell	8	120" Cordless 120" Corded	Filtered
Linen, Room Darkening	9/16" Single Cell	8	120" Cordless 120" Corded	Blocked
Designer Textures, Light Filtering	9/16" Single Cell	19	120" Cordless 120" Corded	Filtered
Designer Textures, Room Darkening	9/16" Single Cell	19	120" Cordless 120" Corded	Blocked
Designer Textures, Energy Shield	9/16" Single Cell	19	120" Cordless 120" Corded	Filtered
Designer Colors, Light Filtering	9/16" Single Cell	32	120" Cordless 120" Corded	Filtered
Designer Colors, Light Filtering	7/6" Double Cell	32	120" Cordless 120" Corded	Filtered
Designer Colors, Room Darkening	9/16" Single Cell	32	120" Cordless 120" Corded	Blocked
Designer Colors, Energy Shield	9/16" Single Cell	32	120" Cordless 120" Corded	Filtered
Classic, Light Filtering	9/16" Single Cell	8	120" Cordless 120" Corded	Filtered
Classic, Room Darkening	9/16" Single Cell	8	120" Cordless 120" Corded	Blocked

Top

Bottomrail Dimensions

Bottomrail	Cellular Size	Dimensions
Standard Corded	Double Cell	1 3/4" d x 5/8" h
Standard Corded	9/16"	1 1/2" d x 7/16" h
Cordless	All	1 3/4" d x 5/8" h
Continuous Cordloop	All	1 3/4" d x 5/8" h

Number of Installation Brackets

Width	Corded	Cordless
Up to 38"	2	2
38" to 68"	3	3
68" to 82"	4	3
82" to 106"	5	4
106" to 130"	6	4
130" and above	7	-

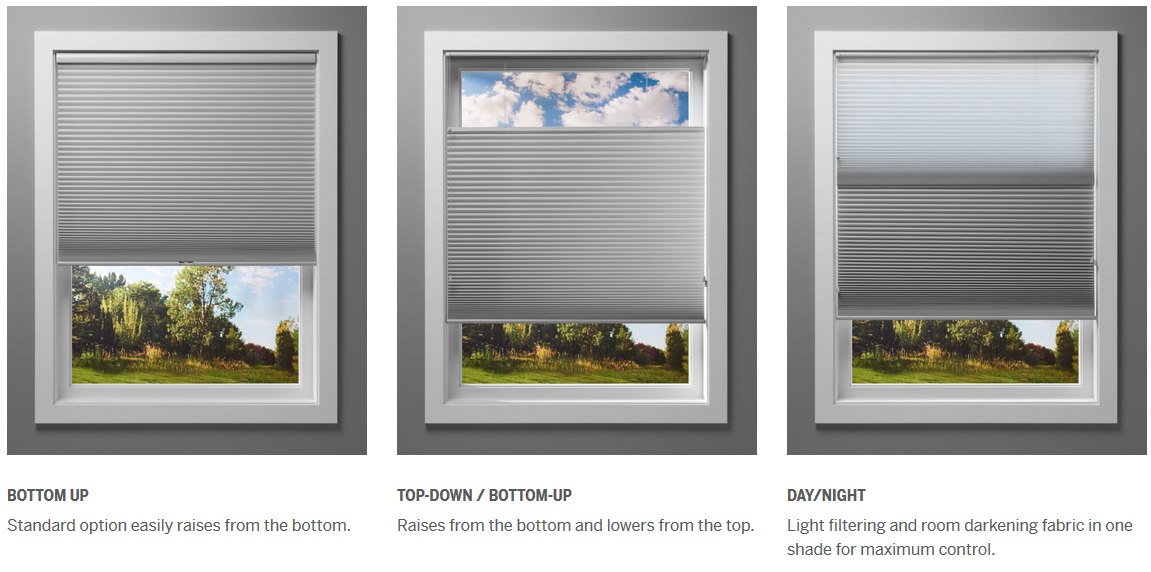

Standard Bottom Up

Standard Bottom Up easily raises from the bottom of the shade. Add the award-winning Cordless feature to your shade for a clean appearance free of dangling cords.

Minimum and Maximums

	Corded	Cordless
Min. Width	6"	10"
Max. Width	144"	120"
Min. Height	6"	6"
Max. Height	144"	96"

Standard Quantity of Cords - Corded Single Cell

Width	Number of Cords
6" to 60"	2
60 1/4" to 96"	3
96 1/4" to 132"	4
132 1/4" to 144"	5

Standard Quantity of Cords - Corded Double Cell

Width	Number of Cords
6" to 44"	2
44 1/4" to 80"	3
80 1/4" to 116"	4
116 1/4" to 144"	5

Top Down

The fabric lowers from the top of the shade. Measure this shade as a standard shade. Bottomrail is stationary.

Minimum and Maximums

	Corded
Min. Width	12"
Max. Width	72"
Min. Height	6"
Max. Height	96"

Top Down/Bottom Up

Now you can enjoy the beauty and warmth of incoming light and your privacy at the same time. Top down/Bottom Up allows you to adjust the top independently from the bottom letting sunlight in while maintaining your privacy.

Minimum and Maximums

	Corded	Cordless
Min. Width	12"	16"
Max. Width	72"	96"
Min. Height	6"	6"
Max. Height	96"	84"

Day/Night

Day/Night combines a Light Filtering fabric with a Room Darkening fabric to give you optimal thermal insulation. The two fabrics on one shade provide versatile light control to create the perfect ambiance or enable maximum privacy so you can relax in your private retreat.

Minimum and Maximums

	Corded	Cordless
Min. Width	12"	16"
Max. Width	72"	96"
Min. Height	6"	6"
Max. Height	96"	84"

Special Notes

Skylight pole can be purchased separately to raise and lower Cordless shades that are hard to reach.
On corded shades, left cord raises the entire shade; right cord operates the two fabrics.
Same fabric on top and bottom not available.
On corded shades, fabrics must be the same cell size.

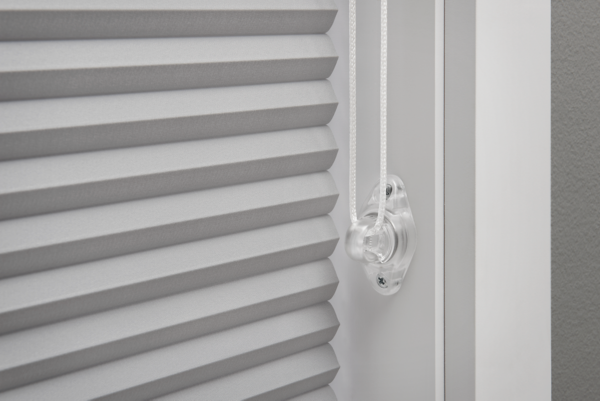

Continuous Cordloop

The Continuous Cordloop option helps easily raise larger shades evenly while keeping them at exactly the height you want without having to lock or unlock the cord. Simply pull the cord until the shade is at the desired height and the shade stays in place while maintaining the same cord length.

Minimum and Maximums

	Cordloop
Min. Width	18"
Max. Width	144"
Min. Height	6"
Max. Height	144"

Cordloop Lengths Available

Width	Length
18" to 48"	2'
48 1/8" to 60"	3'
60 1/8" to 72"	4'
72 1/8" to 96"	6'
96 1/8" to 119 7/8"	8'
120" and above	10'

Special Notes

If width is greater than 120", maximum height is 96".
If width is less than 30", maximum height is 96".
Not available with Cordless, Top down, Top Down/Bottom Up, Transformations™, Angle Top/Bottom or Skylights.
For 2 on 1 headrail, controls will be located on the left side of the left shade and the right side of the right shade.

Multiple Shades on One Headrail

This unique option is suited for multiple windows in one window frame allowing multiple shades to operate independently on one headrail. The result provides a clean appearance and the impression of a single shade operation. Flexibility and convenience made simple.

Minimum and Maximums

	Corded	Cordless
Min. Width	12"	20"
Max. Width	144"	120"
Min. Height	6"	6"
Max. Height	144"	96"

Cordless TD/BU and Transformations™

Min. Width	32"
Max. Width	96"
Min. Height	6"
Max. Height	84"

Special Notes

For standard shades, controls will be located on the left side of the left shade and the right side of the right shade.
Not available with Top Down, Corded Top Down/Bottom Up or Corded Transformations™.

Top

Stacking Charts

These charts represent the amount of shade that is gathered at the top of the window when fully raised. The measurements in these charts include the stack of the fabric, the headrail and the bottomrail.

Corded Stack Heights

Fabric Collection	36"	48"	60"	72"	84"	96"	108"	120"	132"	144"
Linen	2	2 3/8	2 7/8	3 1/4	3 5/8	4	4 3/8	4 3/4	5 1/8	5 1/2
Translucence	2	2 1/4	2 5/8	3	3 1/4	3 5/8	4	4 3/8	4 5/8	5
Designer Textures	2	2 1/2	2 7/8	3 1/4	3 5/8	4	4 3/8	4 3/4	5 1/8	5 1/2
Designer Textures with Energy Shield™	2	2 1/4	2 5/8	3	3 1/4	3 5/8	4	4 3/8	4 5/8	5
Designer Colors	2	2 3/8	2 3/4	3 1/8	3 1/2	3 7/8	4 1/4	4 1/2	4 7/8	5 1/4
Designer Colors with Energy Shield™	2	2 3/8	2 3/4	3 1/8	3 1/2	3 7/8	4 1/4	4 5/8	5	5 3/8
Designer Colors Double Cell	1 7/8	2 1/8	2 3/8	2 5/8	2 7/8	3 1/8	3 3/8	3 5/8	3 7/8	4 1/8
Classic	1 7/8	2 1/8	2 1/2	2 3/4	3	3 3/8	3 5/8	4	4 1/4	4 5/8
Sheer Efficiency™	1 5/8	1 7/8	2 1/8	2 3/8	2 5/8	2 7/8	3 1/8	3 3/8	3 1/2	3 3/4
Designer Textures Room Darkening	2 1/8	2 1/2	2 7/8	3 1/4	3 5/8	4	4 3/8	4 3/4	5 1/8	5 5/8
Designer Colors Room Darkening	2	2 1/4	2 5/8	3	3 1/4	3 5/8	4	4 1/4	4 5/8	5

Shade height in inches

Cordless and Continuous Cordloop Stack Heights

Fabric Collection	36"	48"	60"	72"	84"	96"	108"	120"	132"	144"
Linen	3	3 3/8	3 3/4	4 1/8	4 1/2	4 7/8	5 1/4	5 5/8	6	6 3/8
Translucence	2 7/8	3 1/8	3 1/2	3 7/8	4 1/4	4 1/2	4 7/8	5 1/4	5 5/8	5 7/8
Designer Textures	3	3 3/8	3 3/4	4 1/8	4 1/2	4 7/8	5 1/4	5 5/8	6	6 3/8
Designer Textures with Energy Shield™	2 7/8	3 1/8	3 1/2	3 7/8	4 1/4	4 1/2	4 7/8	5 1/4	5 5/8	5 7/8
Designer Colors	2 7/8	3 1/4	3 5/8	4	4 3/8	4 3/4	5 1/8	5 1/2	5 3/4	6 1/8
Designer Colors with Energy Shield™	2 7/8	3 1/4	3 5/8	4	4 3/8	4 3/4	5 1/8	5 1/2	5 7/8	6 1/4
Designer Colors Double Cell	2 5/8	2 3/4	3	3 1/4	3 1/2	3 3/4	4	4 1/4	4 1/2	4 3/4
Classic	2 3/4	3	3 3/8	3 5/8	4	4 1/4	4 1/2	4 7/8	5 1/8	5 1/2
Sheer Efficiency™	2 1/2	2 3/4	3	3 1/4	3 1/2	3 3/4	4	4 1/4	4 1/2	4 5/8
Designer Textures Room Darkening	3	3 3/8	3 3/4	4 1/8	4 1/2	4 7/8	5 1/4	5 5/8	6 1/8	6 1/2
Designer Colors Room Darkening	2 7/8	3 1/8	3 1/2	3 7/8	4 1/8	4 1/2	4 7/8	5 1/4	5 1/2	5 7/8

Shade height in inches

Energy Efficiency

Understanding the Science
Not only does Levolor have beautiful colors and exclusive woven fabrics, it also has the most energy efficient shading solutions on the market. Two things to consider when looking at how to increase energy efficiency are R-Value and Solar Heat Gain Coefficient. It is the combination of the two that helps you calculate the amount of savings on your heating and cooling costs.

R-Value
R-Value refers to the shade's ability to block out temperature differences, such as cold air outside in the winter. A higher R-Value indicates a better insulating shade.

Solar Heat Gain Coefficient (SHGC)
Solar Heat Gain is a measure of how much solar energy passes into your home. In northern climates, a highr SHGC is preferred because it allows the sun to heat the room. While in more southern climates, a lower SHGC is better because it blocks the sun.

Fabric Type	Collection	SHGC	R-VALUE	UPF Rating
Sheer	Sheer Efficiency™ with Energy Shield™	0.40	3.33	20
Woven	Linen	0.31	3.45-3.62	50
Woven	Translucence	0.32	3.45-3.62	50
Woven	Designer Textures	0.34	3.45-3.62	50
Woven	Designer Textures with Energy Shield™	0.25	3.45-3.62	50
Woven	Designer Textures Room Darkening	0.21	3.45-3.62	50
Non-woven	Designer Colors Single Cell	0.25	3.45-3.57	50
Non-woven	Designer Colors Single Cell with Energy Shield™	0.23	3.45-3.57	50
Non-woven	Designer Colors Room Darkening	0.22	3.45-3.57	50
Non-woven	Classic	0.32	3.45-3.57	35
Double Cell	Designer Colors Double Cell	0.19	3.85	50

The Ultraviolet Protection Factor (UPF Rating)
The Ultraviolet Protection Factor shows how well fabric protects from solar UV rays. Our Accordia™ Cellular fabrics have UPF ratings to help you gauge the best solution for protecting your furnishings, floor coverings and artwork from fading. UPF ratings range from 15 to 50.

	UPF Rating	UV Blockage
Good	15 to 25	93-96%
Very Good	25 to 35	96-98%
Excellent	35 to 50	98-99%

Motorization Available	Watch Movie
ontrol light and privacy with a simple click Update to LEVOLOR's motorized options to control light and privacy using a remote control or the LEVOLOR app. LEVOLOR App (with Premium 6-Channel Remote only) Note: LEVOLOR Premium 6-channel remote is required in order to use the LEVOLOR app; Basic 3-channel remote is not compatible with app.

remium 6-Channel Remote LEVOLOR App

LEVOLOR’s Bluetooth® enabled app allows you to schedule your window coverings to adjust automatically on a timed schedule, when paired with the Premium 6-Channel Remote. Our unique technology allows users to program a schedule on the app while they are within range of the window covering and remote, and it will still operate once they leave the home. However, the app can not be used to adjust the programmed schedule while away from the home. The device with the app must be within the range of the remote and window covering to change the schedule. Bluetooth technology is a short-range wireless connection between electronic devices. Users need to be close by or “within range” in order for the devices to connect and talk to one another. LEVOLOR defines “within range” as being in the

Tips To Remember:

Use a steel measuring tape
Round down to the nearest 1/8" for width
Round up to the nearest 1/8" for height
See Product Specifications for more specific product info.
Sizes should always be provided in this format: Width x Height
On any measurement given, the factory does have a +/- 1/8 of an inch variance allowance.

Measure For Cellular Blinds

Inside Mount Width

•   Measure the exact width (left to right) of the inside edge of the window frame in three places (top, middle and bottom).
•   Take the smallest of the three measurements to the nearest 1/8 of an inch.
•   The factory will take an approximate 3/8 of an inch deduction from the total width (headrail and fabric) to allow for correct installation.

Inside Mount Height

•   Measure the exact height (top to bottom) from the top inside edge down to the window sill in three spots across window.
•   Take the largest of the three measurements.

Outside Mount Width

•   Measure the exact width (left to right) of the wooden or metal window frame (outer edge) OR how wide you want the product to be.
•   Be sure to measure wide enough as to cover the entire window plus offer enough coverage to avoid light or privacy gap. This is especially important if you have no trim and are installing to sheet rock or dry wall surface. 1-2 inches past the opening on EACH side is suggested if you do not have molding/trim.
•   French doors-you should have a minimum of 1 inch past the glass on each side added to the glass measurement for coverage.

Outside Mount Height

•   Measure the top and bottom edge of window frame/trim. If no trim, be sure you provide the height you want the shade to be from top of the headrail to bottom of the bottom rail.
•   Be sure to allot for coverage for light control and mounting hardware if mounting above window opening to wall surface. You will need 2 inches of surface area to mount above opening. Call us for further instruction if needed.
•   French doors-Be sure to add 2 inches for mounting above glass on surface of door for installation brackets and 2 inches below for hold down bracket install.-Call us for more information on this type of install.

Installation Instructions
